Stick Pack
Mespack - A Duravant Company

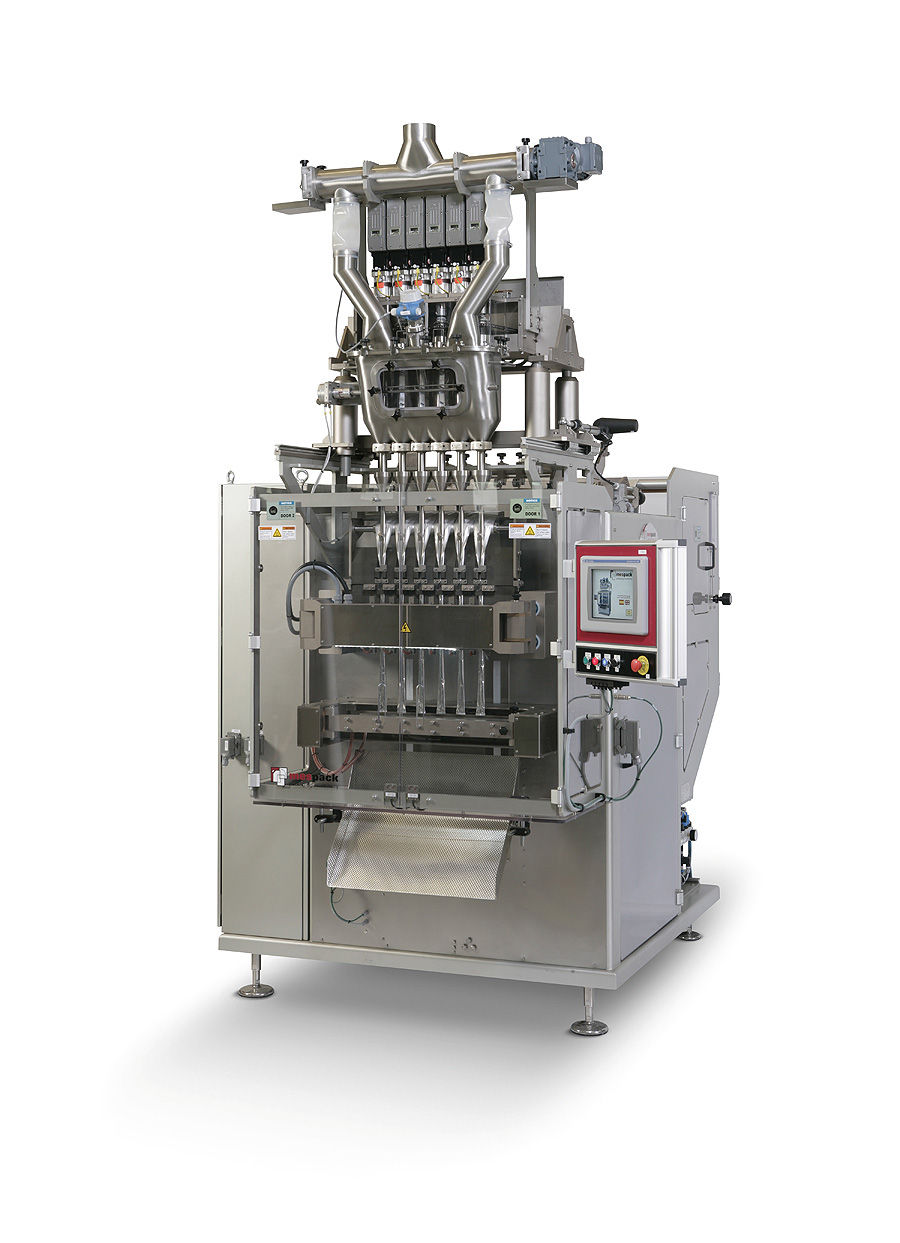

MS/MSPH Series - vertical form-fill-seal
Available from 2 - 20 lanes
Mespack's extensive range of equipment includes a range of vertical form-fill-seal (VFFS) machines to produce stick packs suitable for liquids and dry products, including multi-component products filled into the same stick.
​
A stick pack is a single dose, elongated, easy opening, tube shaped packaging format. It is extremely versatile and perfect for on the go consumers.
Multilane equipment is available from 2 – 20 lanes with an output up to 1380 sticks per minute.
​
Machines are designed to run film reels up to 1200 mm wide (patent pending) which gives the option to run sticks up to 25mm wide in a 20 lane format at 1200ppm.
​
Wide sticks/pillow pack format possible up to a maximum 115mm wide.
​
Models within the range can be supplied with augers, volumetric systems, flowmeters, MHW and vibratory lane feeder integration.
​
Various accessories are available on request.
Some key features include:
​
-
Full servo motorized equipment
-
Maximum reel width 1200 mm
-
Monobloc tubular steel structure
-
Compact design
-
Production of up to 75 strokes per minute
-
Integrated electrical cabinet
-
Easy access to all parts of the machine
-
Easy access to perform maintenance
-
Adjustable horizontal cutting knives (flat or zig-zag)
-

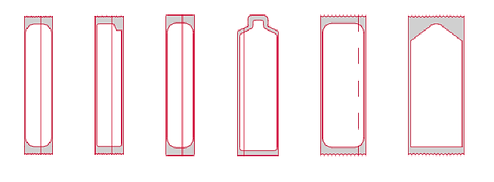

Die cut for shaped sticks, rounded edges optional
-
Servo-motorized horizontal seal jaws
-
Servo-motorized circular knives
-
Automatic lubrication through the PLC
-
PLC with independent temperature control system
-
Transparent polycarbonate protections with safety magnetic detectors
-
12 colour touch screen Allen-Bradley
-
Drag of the servo-motorized film
-
Pneumatic expandable coil shaft
-
Hygienic design
​
-
NEW: MSPH stickpack machine focused on the pharmaceutical industry with integrated cartoning solution compliant with GAM5, GMP, 21 CFR Part 11. Protocol DQ/IQ/OQ/PQ
